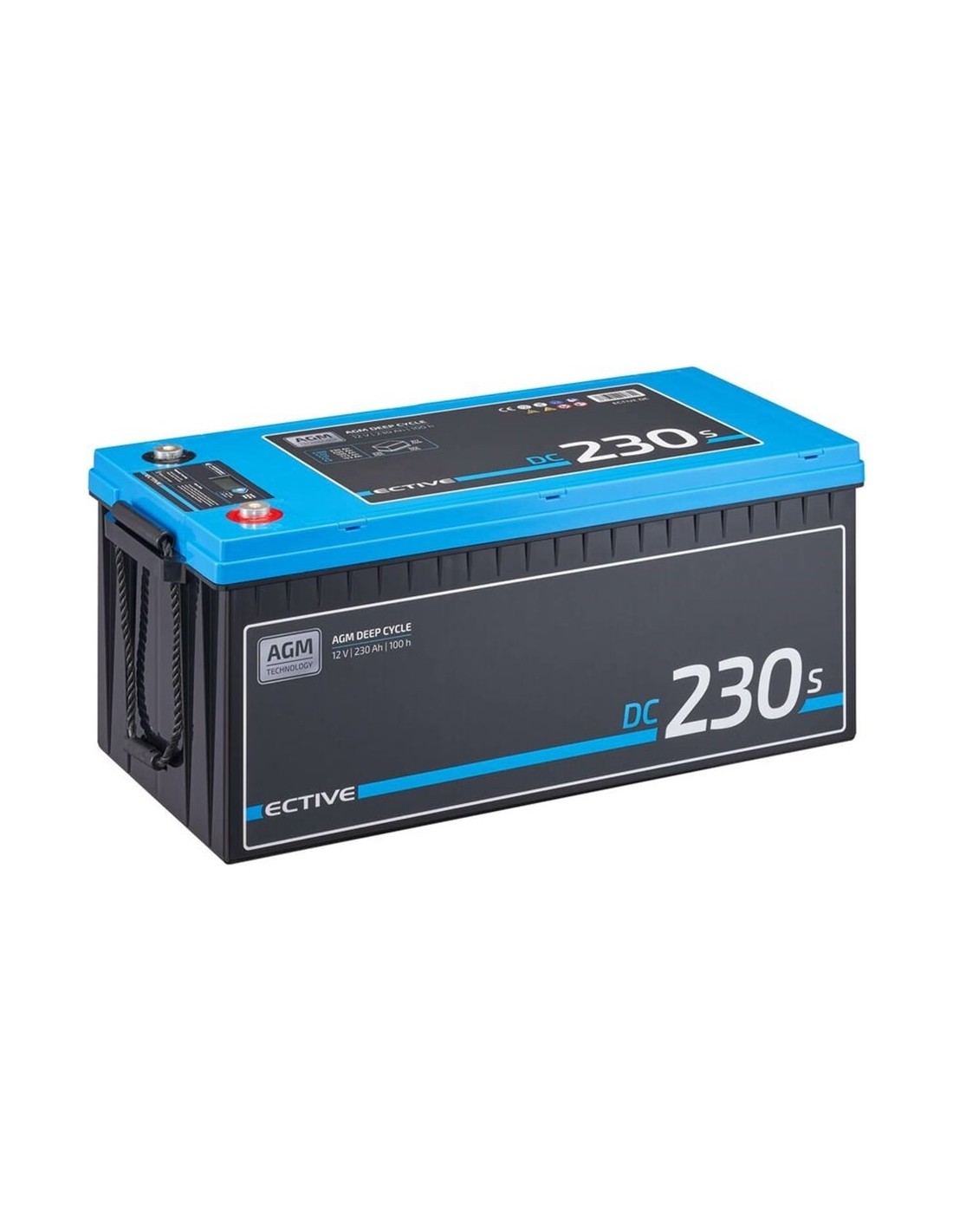

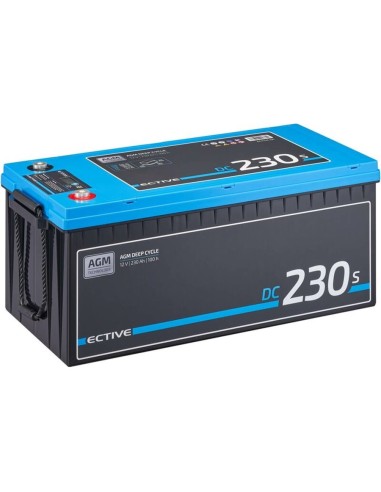

AGM 230AM ECTIVE DC camper battery

All the advantages of ECTIVE DC-S AGM batteries at a glance:

More than 15% more cycle stability

Battery monitoring thanks to an intelligent information system

Charging packs enable an extension of the service life

Low power loss, even with frequent charging and discharging

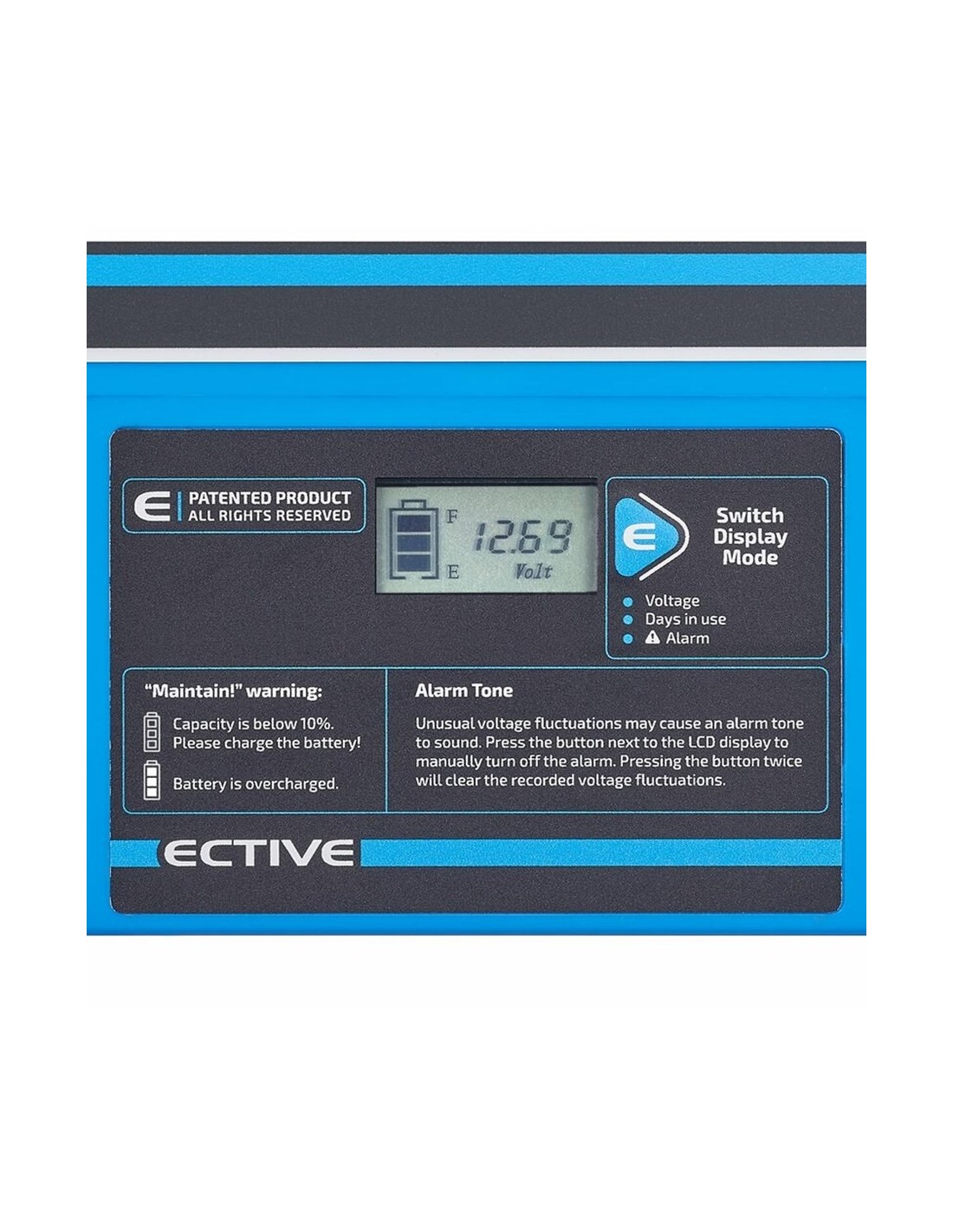

The advantage of the intelligent information system

One of the strengths of the ECTIVE DC-S battery is the integrated and interactive ECTIVE information system, abbreviated EIS. The most important information about the battery can be read on the practical display, for example the charge level or the current voltage. If difficulties arise, such as atypical voltage fluctuations, the EIS warns you with an acoustic signal and an additional message on the display. In addition, the intelligent information system reveals how long the battery has been in use in days.

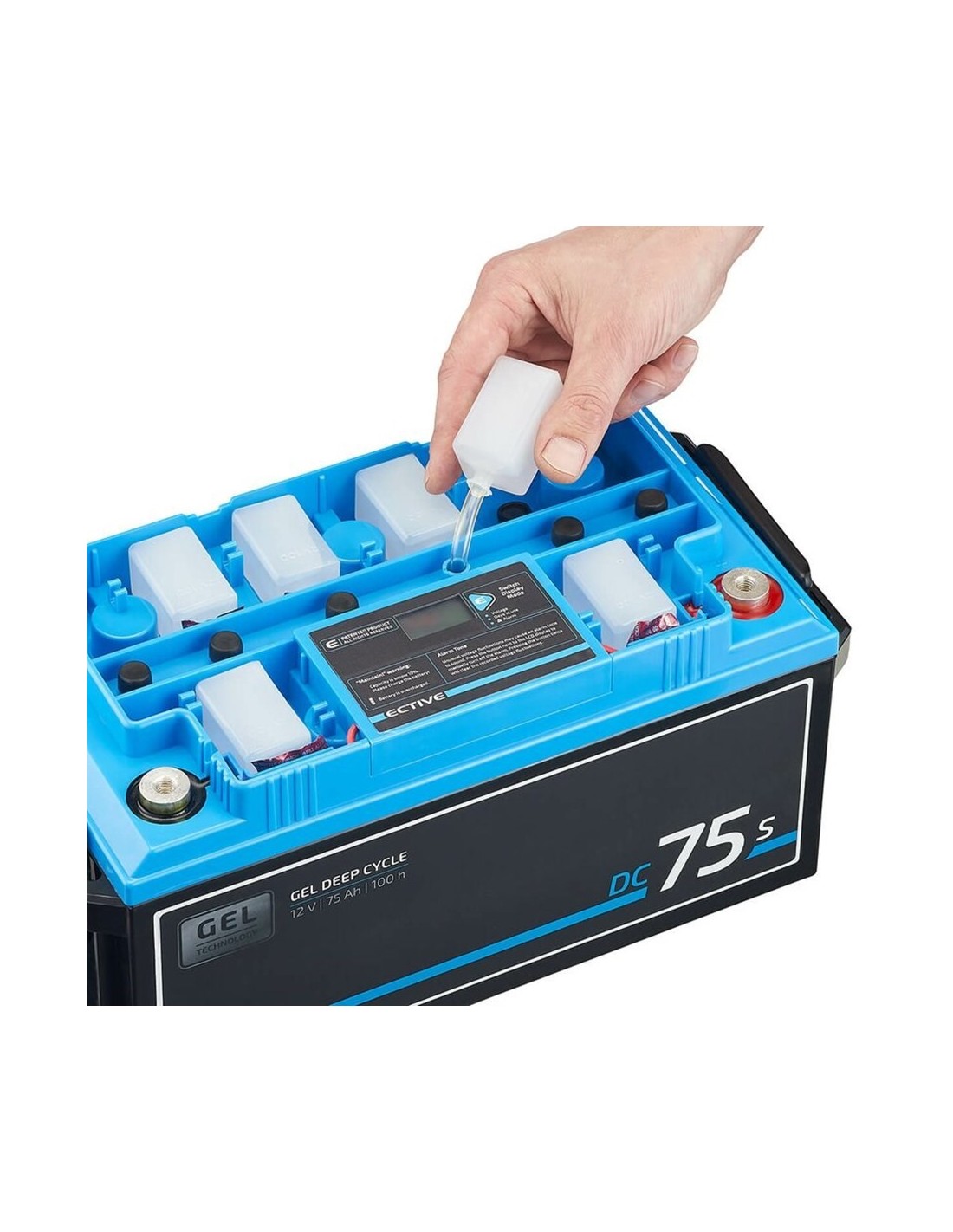

Increase service life with charging packs

High temperatures and overcharging from cheap chargers also lead to increased outgassing with AGM technology. During this natural process, the battery loses the necessary water, so that its performance is considerably reduced over time. Compared to conventional models, the ECTIVE DC-S battery offers the advantage that it is equipped with integrated recharging packs. The "recharging packs" can be replaced in a few simple steps, so that the battery life is easily extended.

Product Properties

Battery Technology General Shareholders Meeting (VRLA)

Voltage 12v

Capacity (Ah) 230Ah

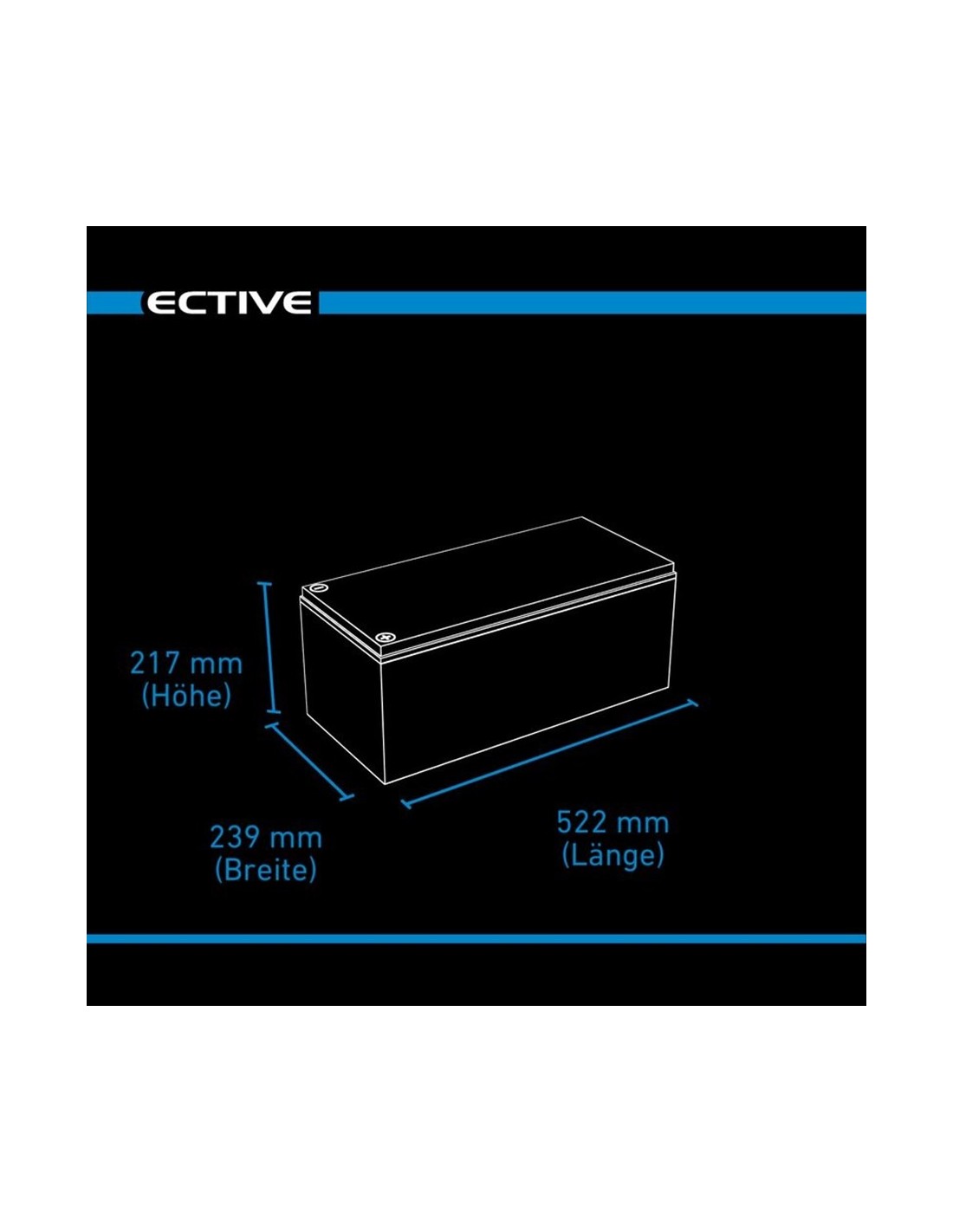

Dimensions (L x W x H) 522x239x217mm

Cycles at 50% DOD 700

Cycles at 30% DOD 1200

Cycles at 80% DOD 450

Cycles at 100% DOD 300

circuit 4 (pole on the narrow side, positive pole on the right)

Capacitance (C3) 153 Ah

Capacitance (C5) 173 Ah

Capacitance (C10) 190Ah

Capacity (C20) 200Ah

Capacity (C100) 230Ah

Current Recommended charging current 20A

Maximum charging current 60A

Recommended charging voltage 14.7v

Maximum charging voltage 14.8 V

Item weight 63.60 kg
