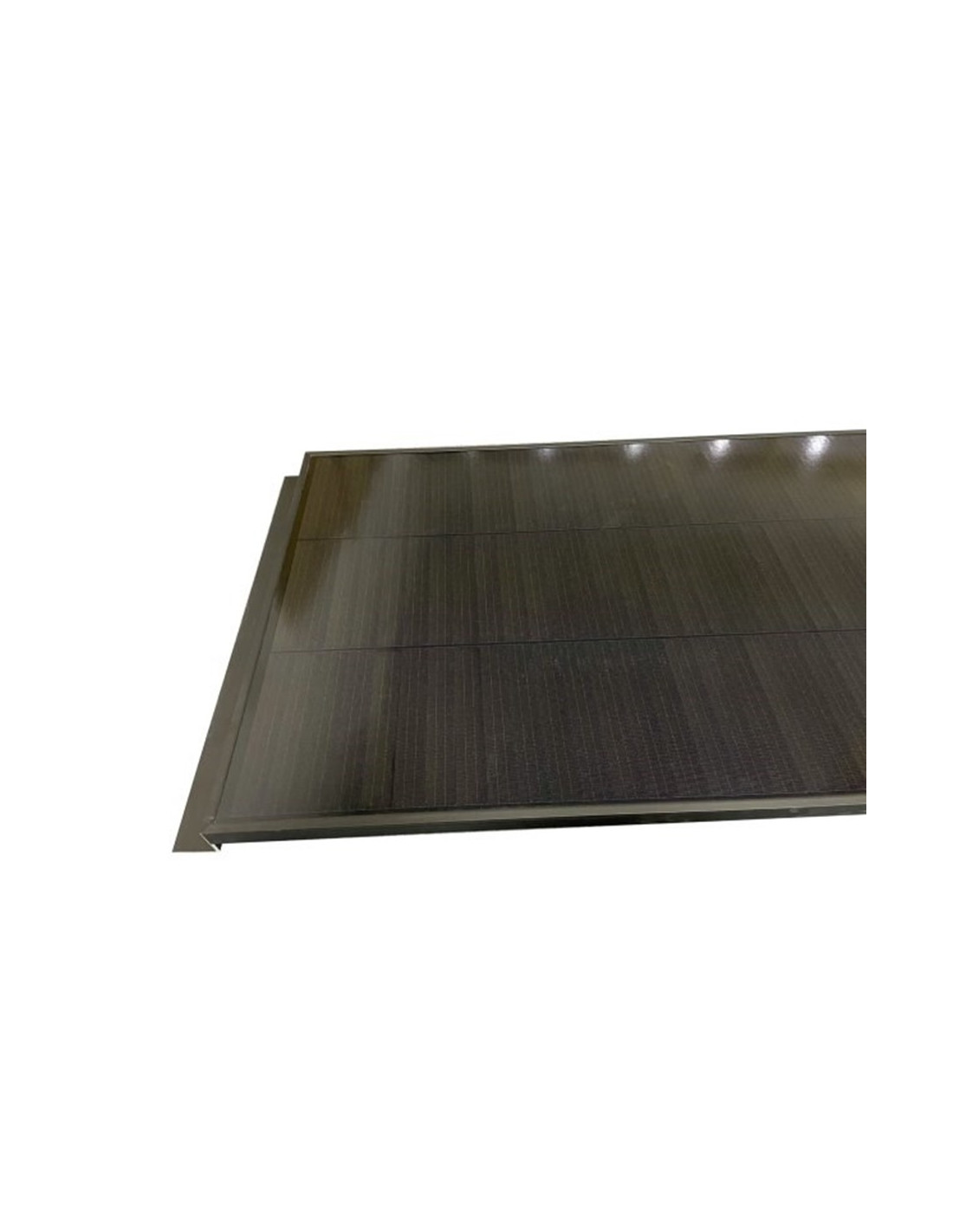

Perc Full Black 160 W Solar Panel with Tea Technology
PERC Full Black 160W solar panel – Shingle technology for maximum efficiency
This 160 W solar panel is designed with technology Shingle PERC, an innovative superimposed solar cell structure that improves performance and aesthetics. Instead of traditional connections, cells are cut into thin strips that overlap as roof tiles, removing spaces between them and allowing more active silicon surface to be integrated into the module.
Thanks to this technology:
-
Improved panel efficiency between 5% and 10% regarding conventional panels.
-
You get an elegant design in full Black finish, ideal for installations in campers, caravans or discreet residential solar systems.
-
The unit between cells is performed with electrical adhesive conductor (ECA), which provides flexibility and durability
Technical specifications:
-
Maximum power: From 120W to 180W depending on the solar plate chosen
-
Maximum power voltage (Vmpp): 18.55 V
-
Maximum power current (Impp): 8.63 A
-
Voltage in open circuit (Voc): 22.05 V
-
Short-circuit current (Isc): 9.14 A
-
Dimensions: 1210 x 670 x 50 mm
Perfect to make the most of the space available in mobile or fixed installations where high performance is required in a compact format.
