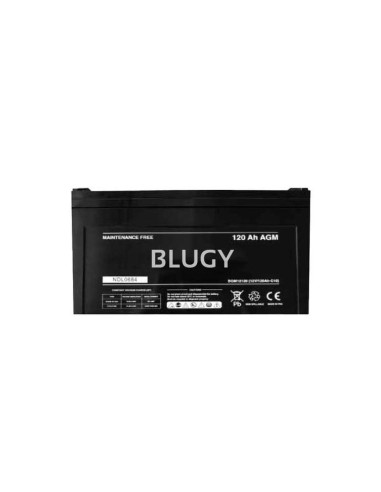

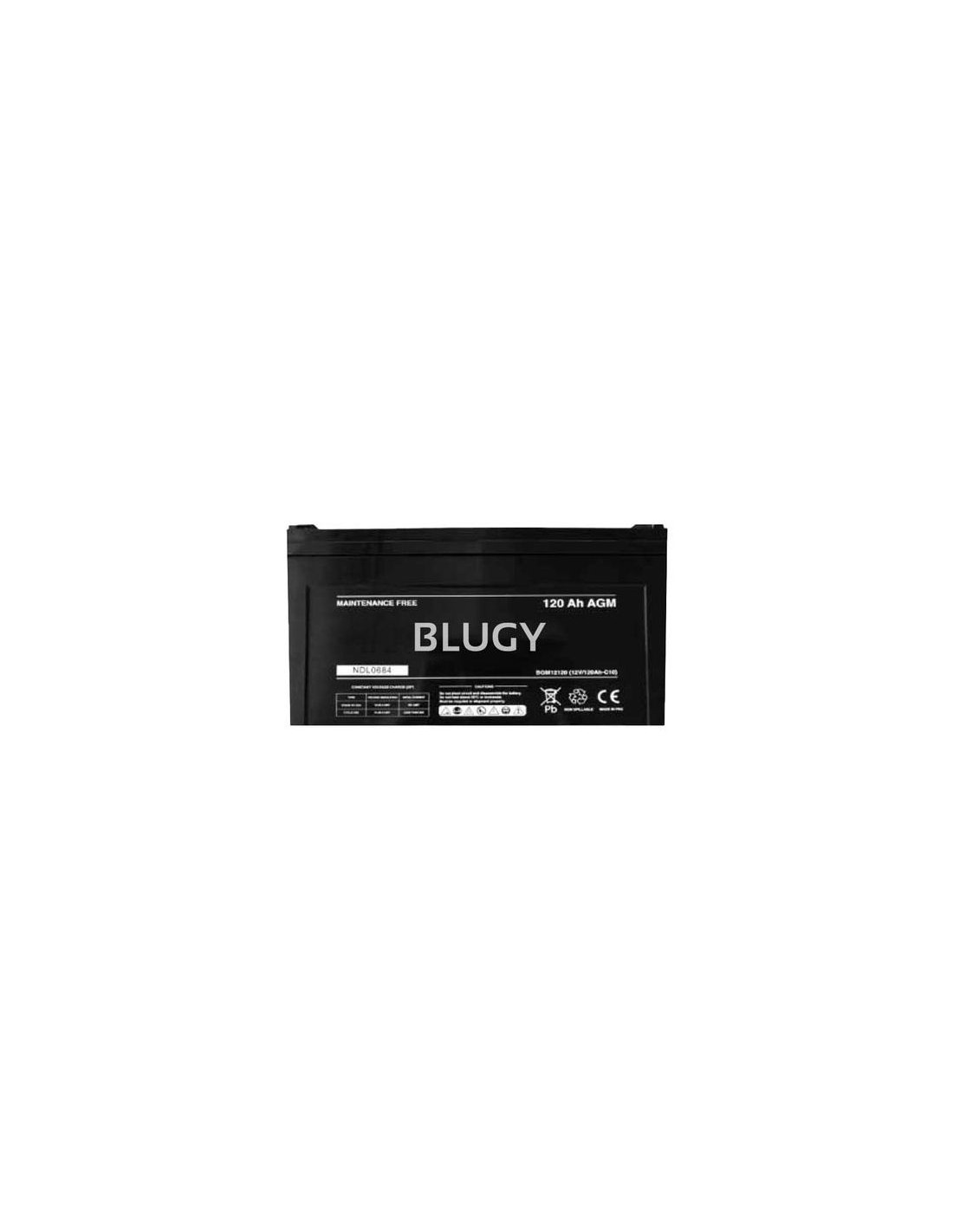

Battery AGM 12v / 120ah BLUGY
The Blugy 12/120 Battery is the perfect solution for those looking for a reliable and long-lasting energy source. With a service life of more than 12 years without maintenance, this advanced lead-acid battery is designed to deliver optimal performance during your life cycle.
Main features:
- Long duration: More than 12 years of service life without maintenance.
- Advanced lead-acid technology for efficient and consistent performance.
- Versatile applications: Ideal for UPS systems, switching equipment, CATV and telecommunications systems.
- High reliability: Guarantees stable energy supply in industrial and commercial environments.
- Resistant and robust: Capable of carrying heavy loads and demanding working conditions.
Technical specifications:
- Nominal voltage:
12V (6 cells per unit)
- Nominal capacity (25oC):
120Ah at a 10-hour discharge rate (up to 10.8V)
- Life of floating design (20oC):
Up to 12 years
- Dimensions and weight:
Long (mm) x Width (mm) x High (mm): 405 x 173 x 227 (238 with handles and terminals)
Weight: 34kg ±2.5%
- Operating temperature range:
Download: -15oC to 50oC
Loading: -10oC to 50oC
- Storage:
-20oC to 50oC
- Charge voltages (to 25oC):
Floating charge: 13.50V to 13.80V, with temperature compensation of -18mV/oC
Cyclic charge: 14.50V to 14.90V, with temperature compensation of -30mV/oC
- Currents:
Maximum load: 36A
Maximum download: 960A (for 5 seconds)
- Terminal material:
Copper.
- Terminal type:
T5/F12
The Blugy 12/120 battery ensures optimal performance and long service life in a wide range of conditions of use, providing a reliable energy solution for critical applications.
