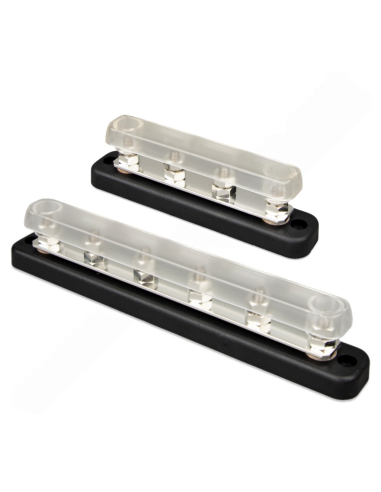

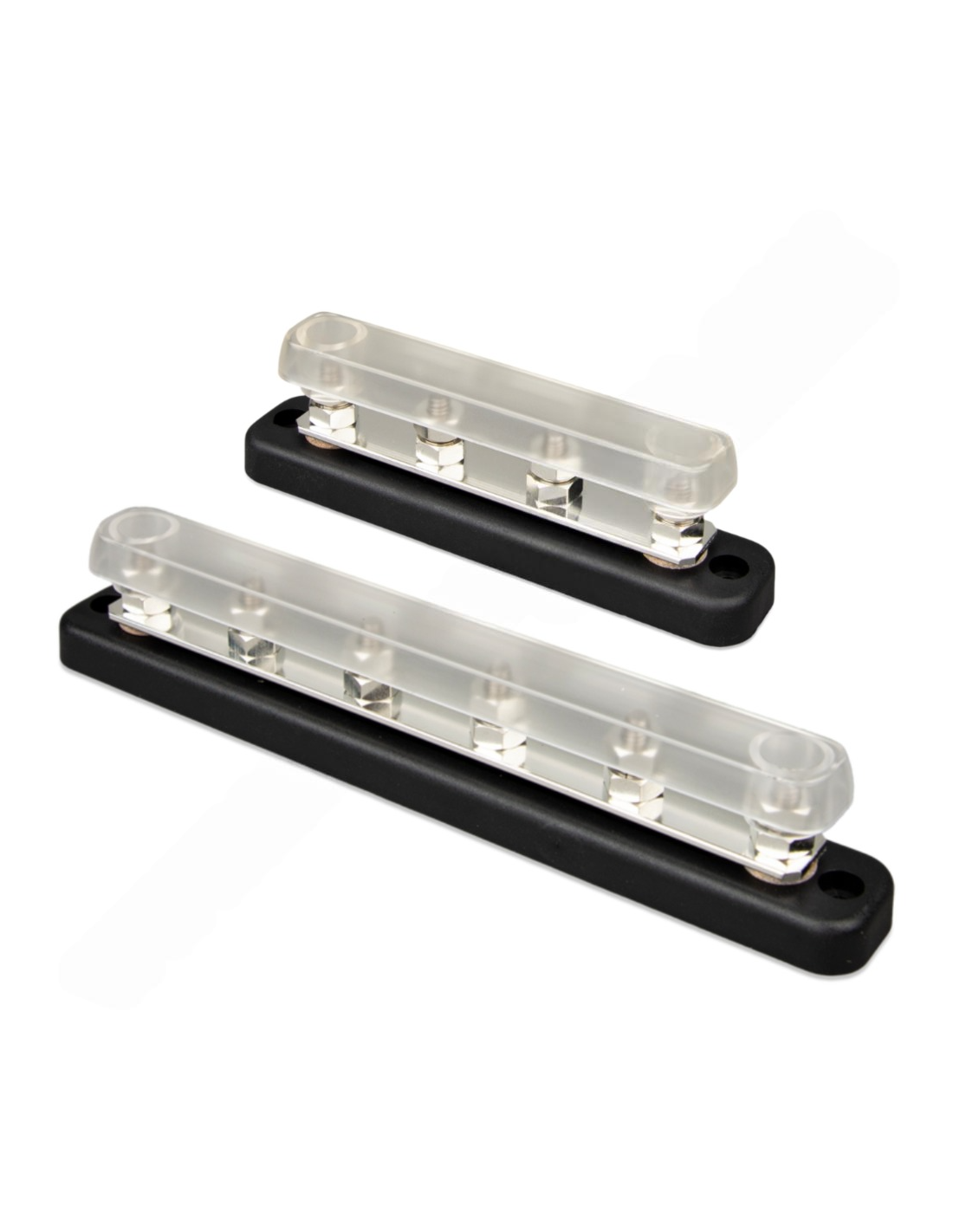

Victron Busbar 150A (to choose)
Victron Busbar 150A (to choose)

Victron Busbar 150A (to choose)

€18.54
Tax included

Bars Collectors Busbar

Them Busbars are collector bars designed for distribution high-intensity current, allowing safe and efficient connections for batteries and continuous power equipment (CC). Each unit includes a removable protective cover for greater safety.

Technical Specifications

  • Maximum current: 150 A
  • Maximum voltage: 70 VDC
  • Terminals:
    • Diameter: 6.35 mm
    • Height: 17 mm
    • Material: Stainless steel
  • Base: Black ABS (UL 94 V-0)
  • Cover: Transparent polycarbonate (UL 94 HB)

A escoger entre 4P cover o 6P cover



Dimensions and Weight

  • Model of 4 terminals: 0.2 kg - 45 x 152,4 x 31,8 mm (Al x La x An, with lid).
  • 6 terminal model: 0.27 kg - 45 x 231,7 x 31,8 mm (Al x La x An, with lid).

These busbars guarantee safe and efficient electrical distribution, ideal for energy systems in high-performance applications.
