Webasto whale expanse 8L On-Board gas boiler

TECHNICAL SPECIFICATIONS - WHALE EXPANSE

• Water capacity:  8 liters

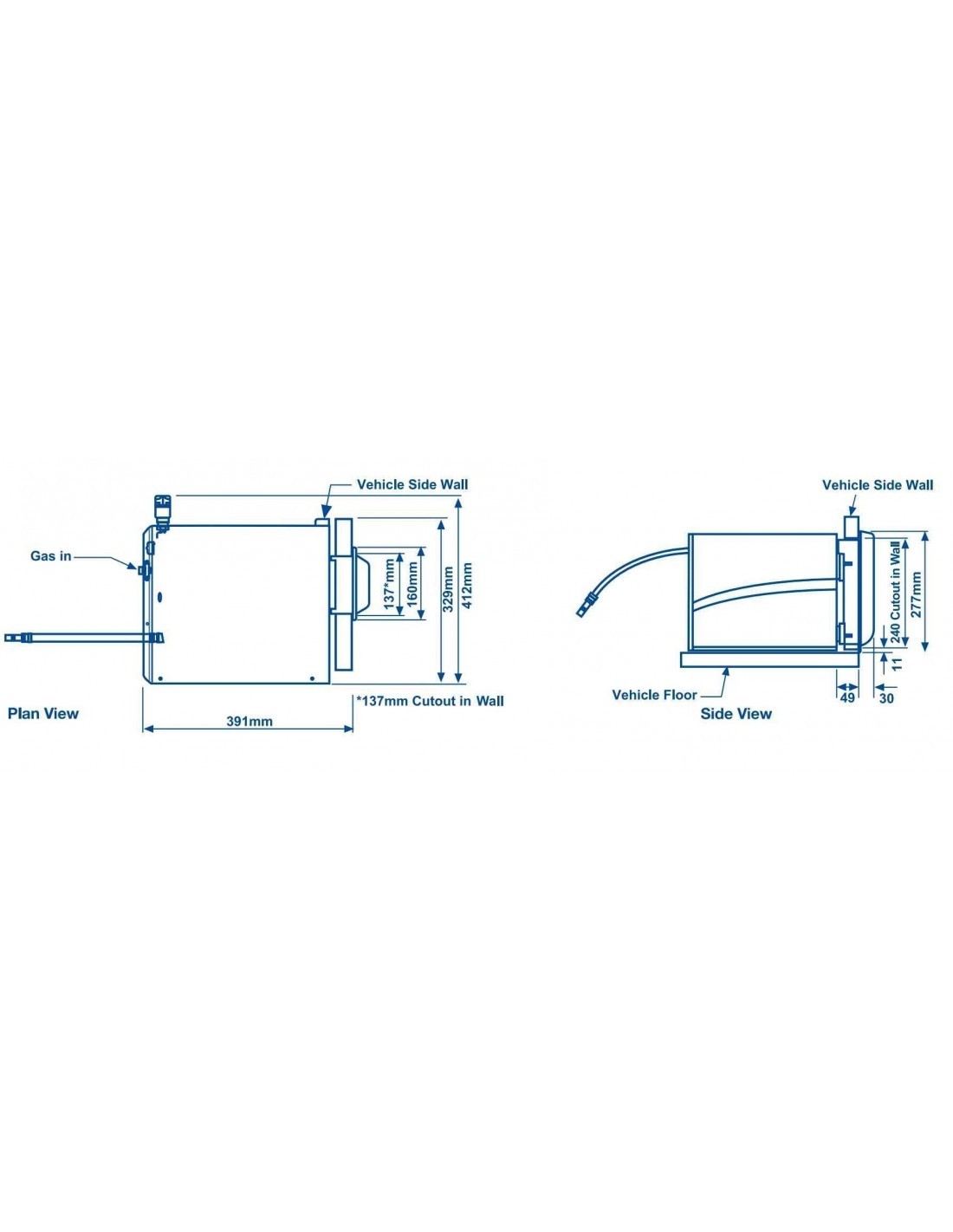

• Dimensions:  522 x 262 x 229 mm
• Weight:  4.2 kg
• Pipe connections:  12 mm
• Gas type:  Butane/Propane
• Voltage:  12 V
• Operating current:  0.48 A
• Standby current:  0.03 A
• Working pressure:  Max. 1.9 bar
• Protection:  IP45
• Maximum water temperature:  70 ºC
• Certifications:  CE-GAD, LVD, EMC, DIN 2001-2

FEATURES & BENEFITS - WHALE EXPANSE

1. Simple control:  Its intuitive control makes it easy to use.
2. Energy efficiency: Fast heat-up with minimal electricity consumption.
3. Compact and lightweight design: Perfect for flexible installations and space optimization.
4. Under-chassis mounting: Saves space inside the cabin, allowing it to be used for other purposes.
5. Freeze protection: Automatically heats water when temperature drops below 5ºC.

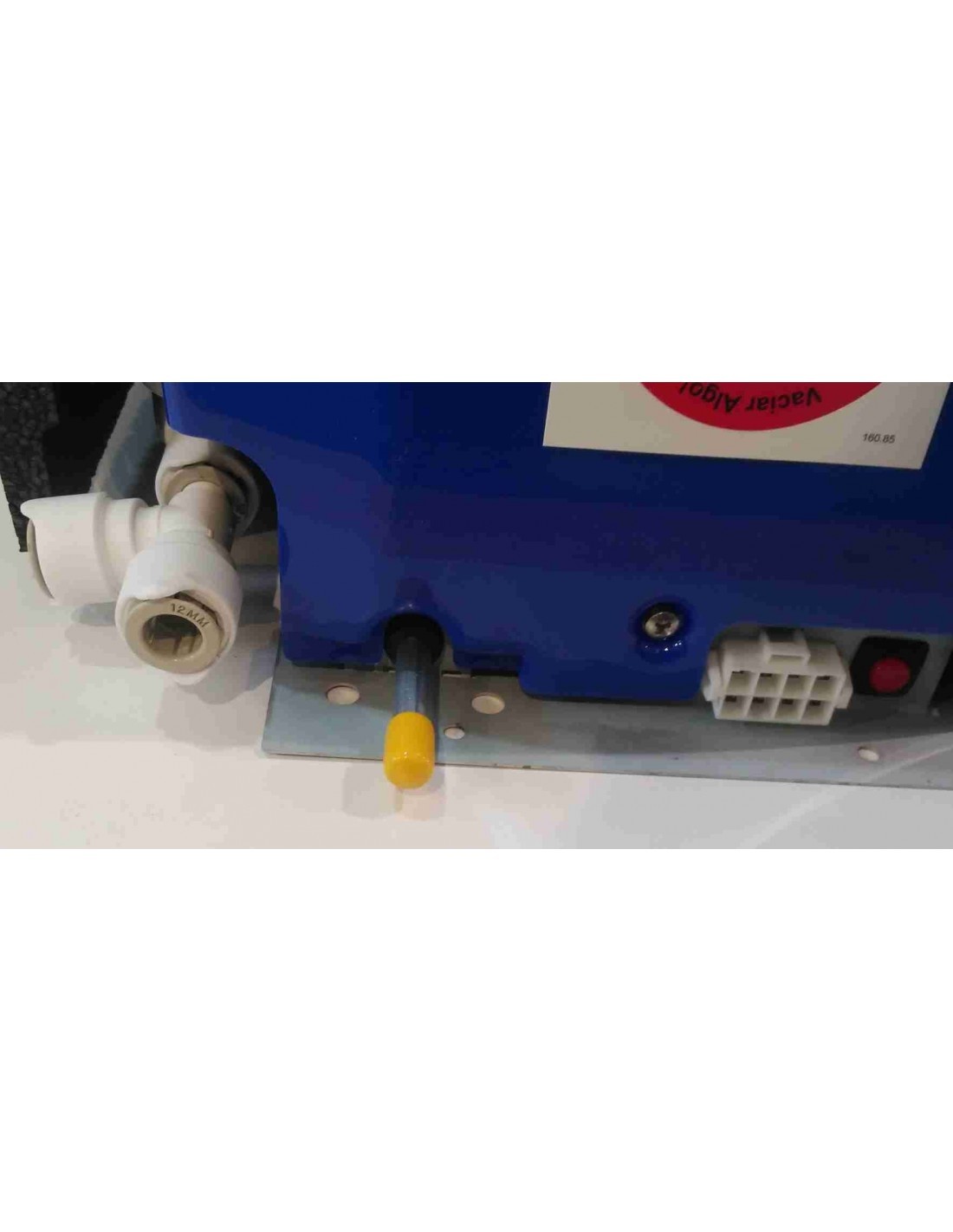

6. Integrated valve: Includes overpressure and drainage valve, avoiding the need to add more components.
7. Fast heat-up: Transfers heat directly to the water, reducing waiting times.
8. High energy efficiency: With an efficiency of 75%, it exceeds the market average (69.8%).
9. Advanced thermal insulation: At outside temperatures of -35ºC, water takes 6 hours to freeze (from 15ºC to 0ºC).
10. Reduced weight: Only 4.2 kg (12.2 kg with water), much lighter than other similar models.
11. Optimized dimensions:  With only 18 cm of height protruding under the vehicle.
12. Large capacity:  8 liter tank for a continuous flow of hot water.
13. Efficient reheating:  Maintains constant performance in generating hot water.

Note:  This heater must be installed by professionals. Incorrect installation could void the product warranty.
